HD Series delivers an excellent visual experience. small pixel pitch led display is with 3840hz high refresh rate, high frame frequency and no ghosting. Front sevice led module and design is for the pitch led video wall. 16 bit grey scale processing.
Good Quality Cabinet, High Consistency
With new die-cast aluminum high-strength materials, High Precision machined by CNC, The flatness of the cabinet is up to 0.01mm.
High Refresh Rate
LED Display HD Series small pixel pitch can achieve 3840hz refresh rate, with high gray scale and high contrast

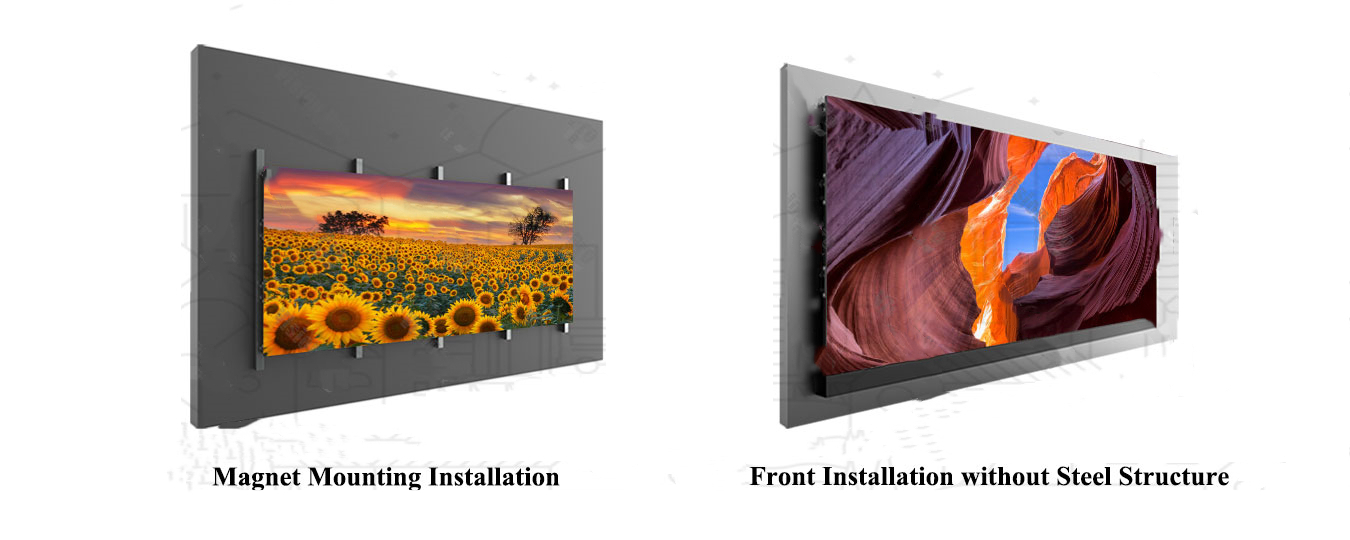

Various Installation ways, both front and rear service.
Front service with magnets, it can mounted on the wall without steel structure.
Technical parameters
| Items | HD16 | HD18 | HD20 | HD25 |
| Pixel Pitch (mm) | P1.667 | P1.86 | P2.0 | P2.5 |
| LED | SMD1010 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density (dot/㎡) | 359856 | 289050 | 250000 | 160000 |
| Module Size (mm) | 320X160 | |||
| Module Resolution | 192X96 | 172×86 | 160X80 | 128X64 |
| Cabinet Resolution | 384X288 | 344X258 | 320X240 | 256X192 |

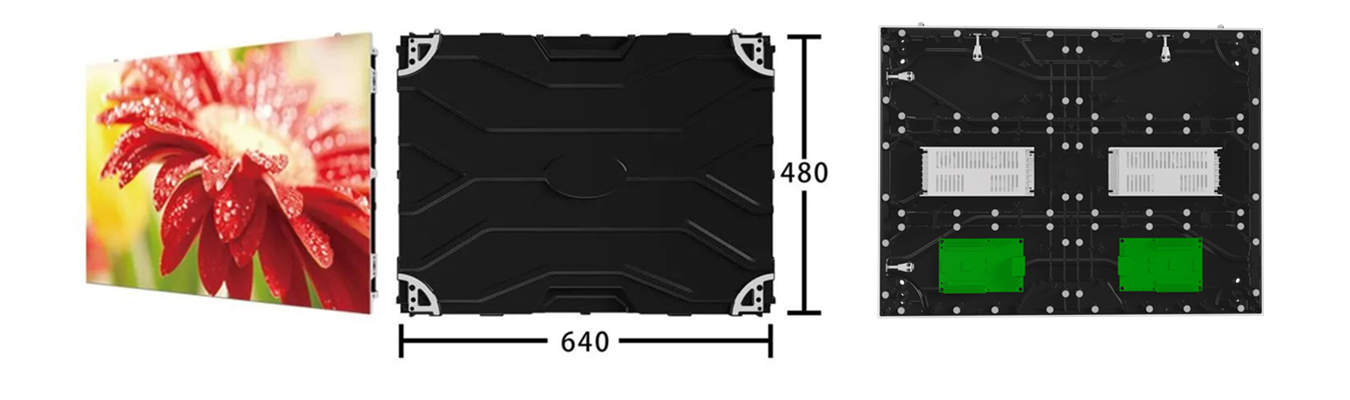

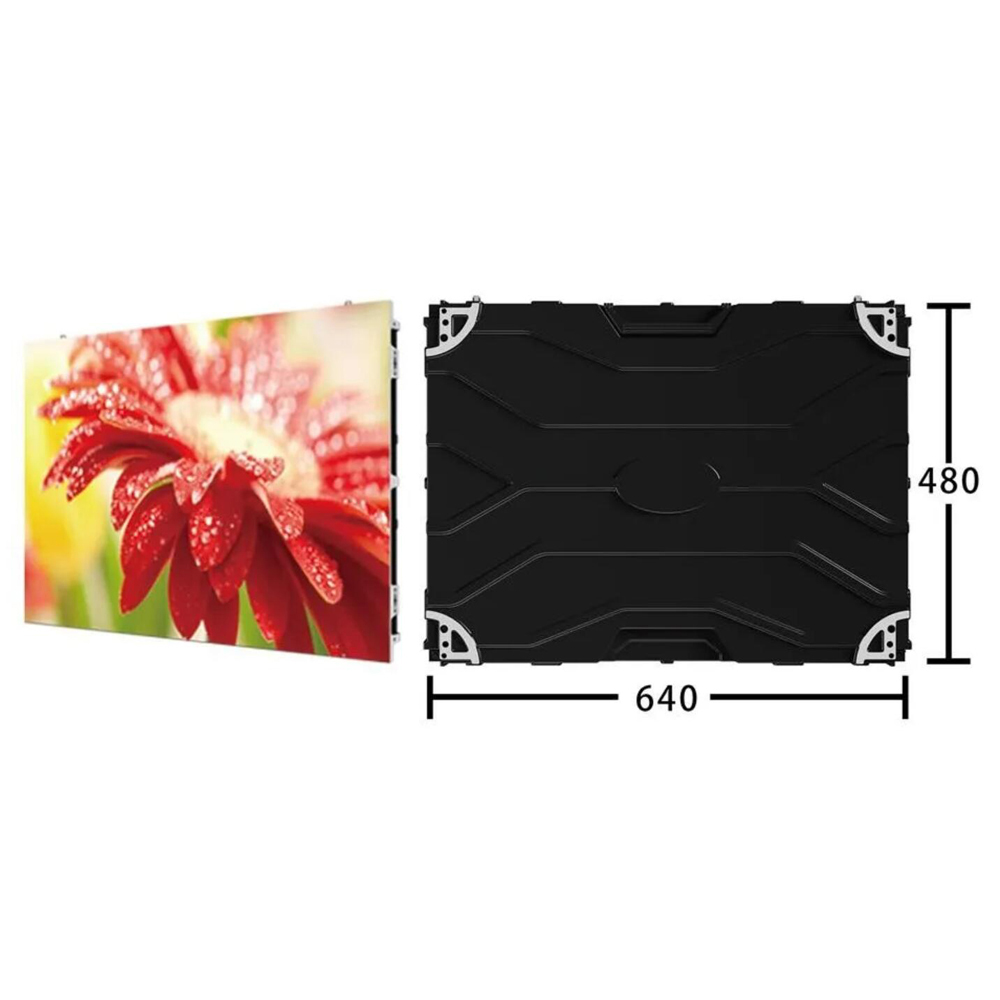

| Cabinet Size (mm) | 640X480X50 | |||
| Cabinet Materials | Die casting Aluminum | |||
| Cabinet Weight | 7KG | |||
| Scanning | 1/48 | 1/43 | 1/40 | 1/32 |
| Input Voltage(V) | AC110~220±10% | |||
| Grey Rating | 16 bits | |||
| Application environment | Indoor | |||
| Protection Level | IP43 | |||
| Maintain Service | Front and rear access | |||
| Brightness | 500-800 nits | |||
| Frame Frequency | 50/60HZ | |||
| Refresh Rate | 3840HZ | |||
| Power Consumption | MAX: 200Watt/panel Average： 60Watt/panel | |||
